Ultra Low Temperature Freezer
Up Right Type -86°C Deep Freezer
Non-CFC high-density polyurethane
Insulation thickness 80mm
The Unique Refrigeration technology with Non- CFC/HCFC natural refrigerant
Fast Cooling down to -86°C with perfect contacted evaporator system
High quality stainless steel inner chamber with rounded corners for easy clean
Mechanical designed cabinet with perfect door seal and closure

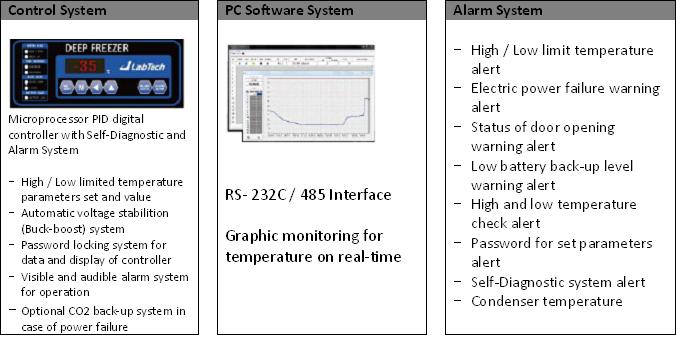

Microprocessor PID digital controller with Audible & Visible Alarm system
Built-in access port for external data monitoring and supply
Feature
Complete sealing and closure mechanism for ultra low temperature
Triple air tight Santoprene sealing gaskets made from Thermoplastics Elastomer
The individual inner doors made from cold- free HDPE material
Mechanically heated door frame seal keeps ice formation-free
Advanced door latch system for perfect closing and easy opening
Non-CFC/HCFC Refrigeration System
Natural refrigerant and hermetically sealed compressor are used for compliance with the New Environmental Protection Regulation
Heavy-duty and user friendly designed chambers Structure
Heavy-duty caster with built-in adjustable stands for easy movement
80mm High density polyurethane foamed insulation maintain cool temperature
Easy opening access door for electric and refrigeration compartment
Height adjustable shelf is stainless steel or epoxy powder coated wire
Automatic voltage regulation and Energy saving elecrtic circuit system
Efficiency and durable electric part and compartment, provides long life cycle, and minimaize electric load leading to consumption of low energy and to protection
Optional LN2 & CO2 back up System
|
MODEL
|
LDF-9010U
|
LDF-9015U
|
LDF-9020U
|
LDF-9025U
|
|
|
Refrigeration
Type
|
Cascade Refrigeration System /
Upright Type
|
||||
|
Dimensions
(W x D x H mm)
|
Inner
|
600 x 650 x 955
|
600 x 650 x 1275
|
750 x 655 x 1275
|
750 x 775 x 1275
|
|
Outer
|
895 x 845 x 1660
|
895
x 845 x 1985
|
1045
x 845 x 1985
|
1045
x 965 x 1985
|
|
|
Capacity
|
369ℓ
|
492ℓ
|
615ℓ
|
730ℓ
|
|
|
Refrigerator
|
1HP x 2
|
1HP x 2
|
3 / 2 HP x 2
|
3 / 2HP x 2
|
|
|
Controller
|
Microprocessor
Digital PID Controller with Battery back up system
|
||||
|
Temperature
|
-40°C to -86°C
|
||||
|
Insulation
|
80mm High
density polyurethane foamed insulation
|
||||
|
Material
|
Interior
|
Stainless Steel
304
|
|||
|
Exterior
|
Epoxy Powder
Coated EGI Steel
|
||||
|
Safety
|
High / Low Temp.
Protector, ELCB, Thermal Protector
|
||||
|
Electric Supply
|
220V/230V,
50/60Hz
| ||||
