Economic Temperature & Humidity
Chamber
Constant
temperature and humidity test from
0°C to 70°C / 30%
to 95% RH
Feature
Microprocessor PID
program controller
LCD
Display with alarm system, 10 steps, 999 cycle
RS-485 Interface
(Option)
For

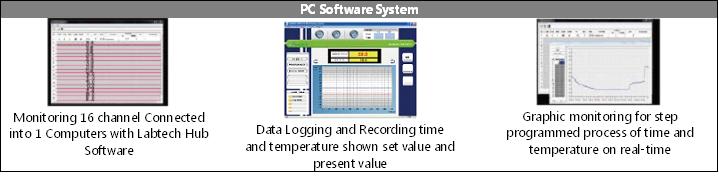

real time monitoring and data logging with PC Software system
Inner Tempered
Glass Door
With
silicon packing easy sample view without door opening
Silent Dual Turbo
Fan
Motor
circulate air and maintain uniforms temperature in the chamber and quiet
operation and auto-defrost function
Safety and
Convenience
Over
temperature and current protection capability ensure user safety and adjustable
sliding rack
Optional recorder
is available
|
MODEL
|
LHT-0151P
|
LHT-0251P
|
LHT-0501P
|
LHT-0801P
|
||
|
Dimension
(W
x D x H mm)
|
Inner
|
600 x 500 x 500
|
700 x 600 x 600
|
800 x 700 x 800
|
100 x 800 x 1000
|
|
|
Outer
|
790 x 820 x 1420
|
890 x 920 x 1460
|
1000 x 1000 x 1600
|
1200 x 1100 x 1700
|
||
|
Capacity
|
150â„“
|
252â„“
|
448â„“
|
800â„“
|
||
|
Controller
|
Microprocessor PID Program Controller
with Alarm System
|
|||||
|
Display
|
LCD Back Light PV & SV Display
|
|||||
|
Heater
|
3kW
|
3kW
|
3.5kW
|
4kW
|
||
|
Humidity
|
Range 30% to 70% RH
Set accuracy ±1% / Uniformity : ± 2% to
3% at 60 % RH
Evaporation by Fan with Heater
(Optional: Ultrasonic Humidifier)
|
|||||
|
Sensor
|
Pt 100Ω & Electronic Sensor
|
|||||
|
Material
|
Interior
|
Stainless Steel 304
|
||||
|
Exterior
|
Epoxy powder
coated EGI Steel
|
|||||
|
Door
|
Inner tempered
safety glass door / Magnetic packed solid out door
|
|||||
|
Shelf
|
2 EA
|
3 EA
|
3 EA
|
6 EA
|
||
|
Access
port
|
Black engineering plastic dia 40mm
|
|||||
|
Safety
|
Over current & Electric leakage
breaker, Hi-Low over temp protector, water level sensor
|
|||||
|
Electric Supply
|
110V, 60Hz or 220V, 50/60Hz
|
|||||
|
MODEL
|
LHT-0150E
|
LHT-0250E
|
LHT-0500E
|
LHT-0800E
|
|
Controller
|
Digital
PID Controller
| |||
