Up Right Type -35°C Deep Freezer
Non-CFC high-density polyurethane
Insulation thickness 80mm

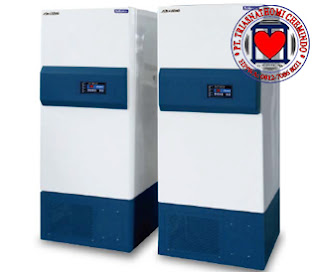

Bio Medical Freezer Upright Type
- The Unique Refrigeration technology with Non-CFC/HCFC natural refrigerant
- Fast Cooling down to -35°C with perfect contacted evaporator system
- High quality stainless steel inner chamber with rounded corners for easy clean
- Mechanical designed cabinet with perfect door seal and closure
- Microprocessor PID digital controller with Audible & Visible Alarm system
- Built-in access port for external data monitoring and supply
Feature
- Complete sealing and closure mechanism for ultra low temperature
- Triple air tight Santoprene sealing gaskets made from Thermoplastics Elastomer
- The individual inner doors made from cold- free HDPE material
- Mechanically heated door frame seal keeps ice formation-free
- Advanced door latch system for perfect closing and easy opening
Non-CFC/HCFC Refrigeration System
Natural refrigerant and hermetically sealed compressor are used for compliance with the New Environmental Protection Regulation
Heavy-duty and user friendly designed chambers Structure
- Heavy-duty caster with built-in adjustable stands for easy movement
- 80mm High density polyurethane foamed insulation maintain cool temperature
- Easy opening access door for electric and refrigeration compartment
- Height adjustable shelf is stainless steel or epoxy powder coated wire
Automatic voltage regulation and Energy saving electric circuit system
Efficiency and durable electric part and compartment, provides long life cycle, and minimaize electric load leading to consumption of low energy and to protection
Optional LN2 & CO2 back up System
Control System
Microprocessor PID digital controller with Self-Diagnostic and Alarm System
- High / Low limited temperature parameters set and value
- Automatic voltage stabilition (Buck-boost) system
- Password locking system for data and display of controller
- Visible and audible alarm system for operation
- Optional CO2 back-up system in case of power failure
PC Software System
RS- 232C / 485 Interface
- Graphic monitoring for temperature on real-time
Alarm System
- High / Low limit temperature alert
- Electric power failure warning alert
- Status of door opening warning alert
- Low battery back-up level warning alert
- High and low temperature check alert
- Password for set parameters alert
- Self-Diagnostic system alert
- Condenser temperature
Optional Accessories
- 7-days Chart Recorder
- Eletromagnetic door password locking system
- CO2 / LN2 Back up System
- IQ – OQ Documentation & Validation
Specification
|
MODEL |
LBF-4010U |
LBF-4015U |
LBF-4020U |
LBF-4025U |
|
Refrigeration
Type |
Single Stage Refrigeration System /
Upright Type |
|||
|
Dimensions Inner (mm) Outer |
600 x 650 x 955 895 x 845 x 1660 |
600 x 650 x 1275 895 x 845 x 1985 |
750 x 655 x 1275 1045 x 845 x 1985 |
750 x 775 x 1275 1045 x 965 x 1985 |
|
Capacity |
369ℓ |
492ℓ |
615ℓ |
730ℓ |
|
Compressor |
3 / 4 HP |
3 / 4 HP |
1 HP |
3 / 2 HP |
|
Controller |
Microprocessor Digital PID
Controller with Battery back up system |
|||
|
Temperature |
-10°C to -35°C |
|||
|
Insulation |
80mm High density polyurethane
foamed insulation |
|||
|
Material
Interior Exterior |
Stainless Steel 304 Epoxy Powder Coated EGI Steel |
|||
|
Safety |
High / Low Temp. Protector, ELCB,
Thermal Protector |
|||
|
Electric
Supply |
220V/230V, 50/60Hz |
|||
