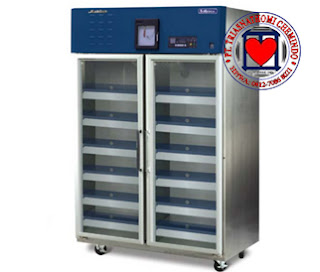

Blood Bank Refrigerator

Temperature Range : 4°C

Blood Bank Refrigerator

Temperature Range : 4°C

Feature

Precise Temperature Control System

Microprocessor PID Controller ensures the most accurate temperature control and maintains cooled temperature during defrost cycle by unique designated technology

PC Software System

RS-232C / 485 interface to LIS / HIS requirement with monitoring software is supplied

Self-Diagnostic and Alarm System

High / Low working room temperature Alarm
Electric power failure Alarm
Status of door opening warning Alarm
Low battery for controller warning Alarm
Operating temperature check in high and low
Password locking system for set temperature

Non-CFC/HCFC Refrigeration System

CFC/HCFC-free Hermetically sealed compressor and Natural Refrigerant gas are used for compliance with the New Environmental Regulation

IQ-OQ Documentation & Validation

Is provided on request as optional order

High-density Polyurethane foam Insulation

With 60mm thickness Insulation provides excellent low temperature and maintains cool temperature for a long time in case of power failure

Vacuum sealed Pair Glass Door

With embedded invisible heating film prevents viewing window from moisture condensation

Automatic Defrost and Dehumidify System

Unique air flow circulation and defrost provides high precision temperature uniformity and stability

User Friendly Design

Built-in Fluorescent lamp with ON/OFF switch and circulation fan stops while door is opening
Door key Lock device and password lock for safety
Drawer shelf provides easy storage blood bags with triple sliding rail mechanical system

Magnetic packing with adjustable tension Door

Magnetic packing with adjustable enforced tension door prevent cold temperature from any air leakage

Pt – 100Ω RTD Sensor is built-in liquid bottle

Provides the exact temperature control for blood bank

Control System

Compliance with International Medical standard and KFDA
Audible / Visible Alarm System

PC Software System

RS -232/485 Interface Graphic Monitoring for temperature on real-time

Alarm System

High/Low temperature alarm
Electric Power Failure Alarm
Status of door opening warning Alarm
Low battery level warning Alarm
High and low temperature check alarm
Password for set parameters protection
Self-Diagnostic and alert system

Equipped as Standard

7-days Chart Recorder
STS Drawer Shelf
Battery Back up System

Optional Accessories

Digital Recorder Polycarbonate Drawer Dividers

Specification

MODEL	LBB-102GR	LBB-103GR	LBB-104GR
Dimensions Inner (W x D x H mm)Outer	560x660x800 683x775x1490	620x700x1410 740x805x1985	1140x700x1410 1260x805x1998
Capacity	295ℓ	612ℓ	1125ℓ
500ml Bags Capacity	150 EA	300 EA	550 EA
Compressor Non-CFC	1 / 4 HP	1 / 4 HP	1 / 2 HP
Defrost Heater	300W	300W	300W
Defrost Heater	Stable temperature during defrost cycle
Drawer Shelves	3 EA	6 EA	12 EA
Controller	Microprocessor PID Program Controller with Battery back up system
Display	4 Digit LED Display & LED signal lamps
Temperature	4°C Set Accuracy ±0.1°C / Uniformity ±1°C at 4°C
Temperature Alarm	Set High Limit & Low limit temperature, Audible and Visible Alarm
Material Interior Exterior	Stainless Steel Epoxy powder coated EGI steel
Door	Vacuum Sealed Pair Glass Swing Door : Invisible heat film embedded, Key locker, Adjustable tension spring, Magnetic Packing door
Air Circulation	Turbo Fan with automatic stop / run during door open
Safety	High/Low Temp. Protector, ELCB, Thermal Protector
Electric Supply	110V 60Hz or 220V/230V 50/60Hz
