Culture Chamber

Culture Chamber

Feature

Microprocessor PID Control

Provides high precision temperature, relative humidity, illumination and CO2 control for uniform and stable growth envoronment

10 Step Program with PC Interface (Option)

Controller provides automatic operation of various programmed cycles and maximum 999 cycles PC software for monitoring and data logging

Self-Diagnostic and Alarm system

Automatically check any malfunction or errors and visible alarm system

Forced Air Circulation System

Silent and durable fan motor to maintain uniform temperature and humidity by air circulation from down to top air flow direction

Direct Illuminated Light Bank System (Option)

Built-in front door, built-in ceiling and each shelf with programmable control up to 35.000 Lux available various lamp selection

Lamp-on-Delay System

Protects plants from stress by preventing sudden change of light strength and switch on / off time control

Technical Design and Structure

Complete sealed stainless steel chamber with light transferable inner tempered safety glass door with solid out door built-in light bank

Non-CFC/HCFC Refrigeration System

CFC / HCFC-free Hermetically sealed compressor and eco-friendly refrigerant gas are used for compliance with the New Environmental Regulation

2 Direction Lighting

• Microprocessor Programmer PID Control with PC Interface (Option)
• Programmable Operation Cycle

Specification

MODEL	LCC-150MP	LCC-250MP	LGC-500MP		LGC-1000MP
Dimensions Inner (WxDxHmm)Outer	500 x 500 x 600 660 x 810 x 1330	500 x 500 x 1000 660 x 810 x 1770	700 x 600 x 1000 860 x 910 x 1770		1400 x 600 x 1000 1560 x 910 x 1790
Capacity	150 ℓ	250 ℓ	420 ℓ		840 ℓ
	Adjustable 2 or 3 Shelves
Controller	Microprocessor PID Program Controller with Alarm System
Illumination	FL Lamp 4 EA	FL Lamp 7 EA	FL Lamp 7 EA		FL Lamp 14 EA
Temperature	Range 0°C to 60°C (Light Off) / 10°C to 60°C (Light On) Set Accuracy ±0.1°C / Uniformity : ±1.0°C at 20°C
Heater	1 kW	1.5 kW	1.5 kW		2kW
Compressor	¼ HP	¼ HP	½ HP		½ HP
Material Interior                       Exterior	Stainless steel 304 Epoxy powder coated EGI Steel
Display	LCD Back Light PV &SV Display / 5 Digit LED Indication
Door        Inner                  Outer	Tempered safety Glass door with silicon packing Magnetic packing front door with light bank
Safety	High Low temperature protector, Over current and Leakage breaker
Electric Supply	110V 60Hz or 220V 50/60Hz or 3800V 50/60Hz, 3Phase / 4Wires
MODEL	LCC-151MP	LCC-251MP		LCC-501MP	LCC-1001MP
CO₂ Culture Chamber	CO2 Range 0 to 20% / Digital process Digital NDIR sensor

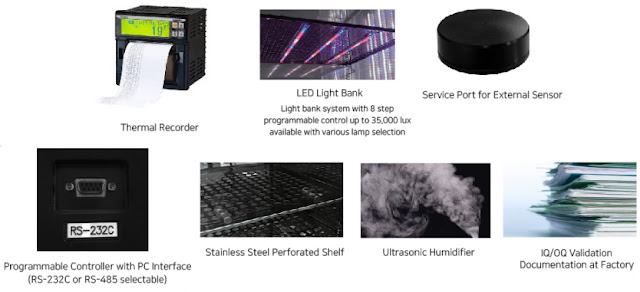

Optional Accessories
