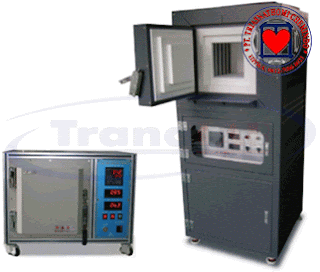

High Temperature Furnace

Feature

Durable molded ceramic fiber insulated chamber and air jacket double walled case
An exhaust gas outlet port is installed on the top to remove corrosive gas, water vapor, and contamination to protect samples from hazardous materials
With a program controller setting and controlling 10 programs & 10 steps are available
Temperature auto-tuning function available
Timer 99hr. 59min. available (Timer and alarm available)
High/Low Temperature Alarm
Setting value is preserved even when the power supply is cut
Safety: Broken temp. sensor error, over temperature protection, electric leakage circuit breaker

Exhausted Gas Outlet Port Installed on the Top

remove corrosive gas, water vapor and contamination for protection from any hazardous materials

Microprocessor PID Digital Controller

Provides for accuracy and reliability, with timer function auto start on-off time and alarm system

10 Step Microprocessor Program Controller (Option)

Durable Molded Ceramic Fiber Insulated Chamber

And air jacked double walled case

Embedded Heating Element

Replaceable embedded heating elements installed in each

Specification

Model	LEF-605S-15	LEF-611S-15	LEF-622S-15	LEF-605S-17	LEF-611S-17	LEF-622S-17
Controller	Digital PID Controller
Model	LEF-605P-15	LEF-611P-15	LEF-622P-15	LEF-605P-17	LEF-611P-17	LEF-622P-17
Controller	Microprocessor 10 Step Program Controller
Dimensions Interior (WxDxH mm) Exterior	150x200x150 700x480x500	200x270x200 750x550x550	250x350x250 800x630x600	150x200x150 750x520x600	200x270x200 800x600x650	250x350x250 850x670x700
Capacity	4.5ℓ	11ℓ	22ℓ	4.5ℓ	11ℓ	22ℓ
Heating Capacity	6kW	10kW	16kW	5kW	8kW	12kW
Max Temperature	1500° (recommendable to use 200°C below the max. temperature)			1700° (recommendable to use 200°C below the max. temperature)
Output Regulator	SSR unit control
Thermocouple	K type CA sensor
Heating Element	SIC Rod			Super Kanthal Rod
Insulation	Vacuum Molded Ceramic Fiber
Electric Supply	110V, 60Hz or 220V 1Phase or 380V 3 Phase,50/60Hz
