Laminar Flow Clean Bench Top Horizontal Type

Filter Replacement Warning Signal by Pressure gauge & Controller display
Built-in Mesh guard for HEPA Filter protection
One touch open front panel for easy maintenance
UV Sterilization with on/off working timer
Option : ULPA Filter 99.999% of 0.3 µm particle remove
Optional Order : Movable Stand should be ordered separately with model number as below

Horizontal Air Flow type

Excellent Performance by Unique Designed Structure and Air Flow System

Feature

ISO 14644-1, ISO Class 5 (Class 100) Standards Compliance

HEPA Filter removes 99.99% of 0.3µm particles

Easy to Replace Filter from the back and Front Panel

With maintenance free design and structure

Laminar Air flow and Uniform air velocity

Provide high clean filter air for high performance

Built-in Lamps and Optional Utilities

UV and Fluorescent Lamp is supplied air and gas cock, Power consent are optional

Air Leak Proof Cabinet Structure

With High Clean stainless steel interior work station and epoxy powder coated steel exterior for long durability

Tempered Safety Glass Wall

At both sides for observation view

Low Noise Level and Vibration free

56-60 dB High efficiency sirocco fan Blower

Microprocessor Digital Controller

With LCD back light display

In compliance with ISO 14644-1, ISO (Class 100) standards

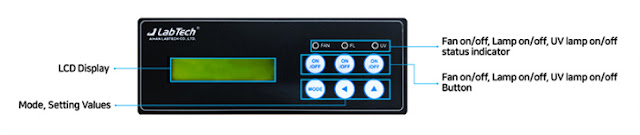

Microprocessor Digital Controller with LCD Display

Air Flow

Optional Accessories

Horizontal Air Flow Type

Specification

Model	LCB-0101V	LCB-0121V		LCB-0151V		LCB-0181V
	Vertical Air Flow Type
Model	LCB-0102H	LCB-0122H		LCB-0152H		LCB-0182H
	Horizontal Air Flow Type
Dimensions Inner (WxDxH mm) Outer	890x550x650 1050x800x1170	1190x550x650 1350x800x1170		1490x550x650 1650x800x1170		1790x550x650 1950x800x1170
Air Volume	980 m³ /h	1350³ /h		1700³ /h		2030³ /h
Controller	9 Stage velocity control, Total using timer, UV/ FL Lamp on/off
HEPA Filter	Class 100, purity 0.3 µm particle removal 99,99%
Prefilter	3-30 µm Particle Removal, Built-in Back panel
Air Flow Velocity	0.3 - 0.6 m/sec
Noise Level	56 – 60 dBA
Light	UV 20 W x 1 EA ,FL 20W x 1EA			UV 40 W x 1 EA ,FL 40W x 1EA
Material Interior Exterior	Stainless Steel 304 Epoxy Powder Coated Electro Galvanized Steel
Door Cover	Tempered Safety Glass Sliding Door
Utility Device	Air Cock, Gas Cock, 110/220V Consent
Electric Supply	110V 60Hz or 220V 50/60Hz
Optional Stand	LST-0100H / V		LST-0120H / V		LST-0150H / V		LST-0180H / V
