Tube Furnace

Tube Furnace

Feature

Durable Molded Ceramic Fiber Insulated Chamber

And air jacked double walled case

Embedded Heating Element

Replaceable embedded heating elements installed in each

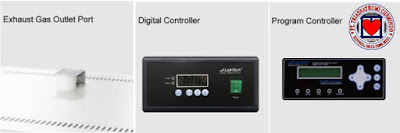

10 Step Microprocessor Program Controller (Option)

Microprocessor PID Digital Controller

Provides for accuracy and reliability, with timer function auto start on-off time and alarm system

Exhausted Gas Outlet Port Installed on the Top

remove corrosive gas, water vapor and contamination for protection from any hazardous materials

Specification

Model	LEF-401S-1	LEF-402S-1	LEF-403S-1	LEF-404S-1	LEF-405S-1	LEF-406S-1	LEF-407S-1	LEF-408S-1
Controller	Digital PID Controller
Model	LEF-401P-1	LEF-402P-1	LEF-403P-1	LEF-404P-1	LEF-405P-1	LEF-406P-1	LEF-407P-1	LEF-408P-1
Controller	Microprocessor 10 Step Program Controller
Dimensions Interior	Ø 80 x ℓ 300	Ø 80 x ℓ 300	Ø 100 x ℓ 300	Ø 100 x ℓ 600	Ø 120 x ℓ 300	Ø 120 x ℓ 600	Ø 150 x ℓ 300	Ø 150 x ℓ 600
(W x D x H mm) Exterior	400x280x560	700x280x560	400x300x600	700x300x600	400x340x680	700x340x680	400x370x740	700x370x740
Capacity	1.4kW	2.6kW	2kW	3kW	2.2kW	4kW	2.6kW	4.6kW
Max Temperature	1100° (recommendable to use 200°C below the max. temperature)
Output Regulator	SSR unit control
Thermocouple	K type CA sensor
Heating Element	Embeded Heat Plate
Insulation	Vacuum Molded Ceramic Fiber
Electric Supply	110V, 60Hz or 220V 1Phase or 380V 3 Phase,50/60Hz

Max. Temperature 1200°C Series (recommendable to use 200°C below the max. temperature)
Model	LEF-401S-2	LEF-402S-2	LEF-403S-2	LEF-404S-2	LEF-405S-2	LEF-406S-2	LEF-407S-2	LEF-408S-2
Controller	Digital PID Controller
Model	LEF-401P-2	LEF-402P-2	LEF-403P-2	LEF-404P-2	LEF-405P-2	LEF-406P-2	LEF-407P-2	LEF-408P-2
Controller	Microprocessor 10 Step Program Controller

Max. Temperature 1250°C Series (recommendable to use 200°C below the max. temperature)
Model	LEF-401S-3	LEF-402S-3	LEF-403S-3	LEF-404S-3	LEF-405S-3	LEF-406S-3	LEF-407S-3	LEF-408S-3
Controller	Digital PID Controller
Model	LEF-401P-3	LEF-402P-3	LEF-403P-3	LEF-404P-3	LEF-405P-3	LEF-406P-3	LEF-407P-3	LEF-408P-3
Controller	Microprocessor 10 Step Program Controller
