Upright Convection Oven

LDO-630F

Upright Convection Oven

Microprocessor PID Temperature Control up to 250°C Digital SetAnd Readout
Membrane Type Keypad
Tempered Safety Glass Window
Ideal for Large Volume Baking Electronic Parts Drying, Conditioning and Sterilizing
Mechanical Forced Flow Convection
Optional RS-485 Communication Interface

Feature

Large Volume Forced Convection

Ideal for baking electronic parts, drying, conditioning, sterilizing and quality control even the most critical laboratory application temperature between ambient +5°C to 250°C

Digital PID Control

Membrane type touch keypad provides precision temperature control, timer, alarm, auto-tunning

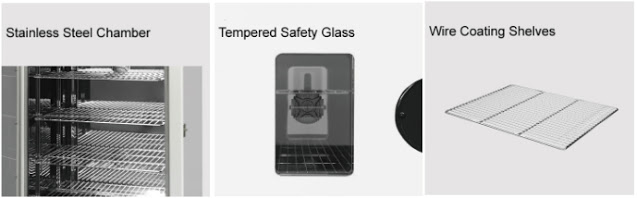

Perforated Stainless Steel Shelf

Is available for an optional order

Tempered Safety Glass Window

For easy sample view without door opening

Safety and Convenience

Over temperature and current protection, leakage breaker ensure user safety and adjustable sliding rack, silent fan motor, fan motor automatically stops when door opened

Specification

Model	LDO-180F	LDO-360F	LDO-630F
Dimensions Inner (WxDxH mm) Outer	400x450x1000 550x750x1560	600x600x1000 750x900x1560	700x700x1300 850x1000x1860
Capacity	183ℓ	360ℓ	637ℓ
Temperature Range Set Accuracy Uniformity	Ambient +15°C to 250°C ±1.0°C ±2.0°C at 120°C
Heater	2kW	3kW	4kW
Controller	PID Multi-Function Controller(Optional Programmable Controller)
Display	LED 4 Digits Display
Timer	99min 59sec. / 99hr 59min / 99days 23hours / Continuous Selectable
Material Interior Exterior	Stainless Steel Epoxy powder coated steel
Hot Air Circulation	Blower with Sirocco Fan
Shelves	Adjustable 2 or 3 Shelves
Door	Tempered Glass Window with Silicone Packing
Insulation	Ceramic and Glass Wool Board
Safety	Over Heat Protector Over Current & Leakage Breaker
Electric Supply	110V, 60Hz or 220V, 50/60 Hz

Optional Accessories

Download Catalog
