Explosion Proof Steam Oven

Ideal for drying dangerous materials, flammable and explosive powder or liquid.

Rapid heat-up time to 90°C within 30 minutes

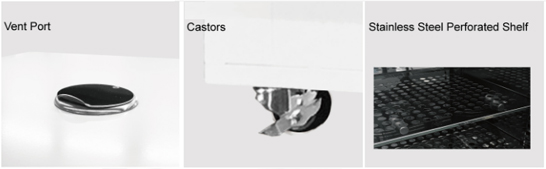

Built-in exhausted air damper from Dia 75 mm to 100 mm
Safety and convenience with sliding lack shelf
100% spark-free drying mechanism with a separate control and boiling system
Indirect heating system with optimized piping construction
Microprocessor PID Temperature Control up to 90°C
Air driven circulation fan

Programmable Controller (Optional PC Interface)

10 Step Microprocessor PID Program Controller RS-232/485 PC Interface
Monitoring 16 Unit Connected into 1 Computers with Labtech Hub Software
Graphic monitoring for step programmed process of time and temperature on real-time

Specification

MODEL	LEO-6050P	LEO-6150P
Dimension Inner (WxDxH mm) Outer	900 x 600 x 900 1400 x 750 x 1200	1000 x 800 x 1200 1500 x 950 x 1600
Capacity	486ℓ	960ℓ
Water Boiler System	4kW	4Kw
Controller	Microprocessor PID Program Controller with alarm system
Display	4 Digit LED Display
Timer	99min 59 sec. / 99hr 59 min / Continuous Selectable
Temp Range Set Accuracy Uniformity	Ambient + 5°C to 90°C ± 1.0°C ± 3.0°C at 60°C
Boiler Capacity	60ℓ	80ℓ
Material Interior Exterior	Stainless Steel Epoxy powder coated EGI Steel
Door	Solid dual door with air tight silicone packing
Safety	Over current & Leakage breaker, Hi-Low temp protector
Air Circulation	Air driven fan
Electric Supply	220V or 380V 3 Ph 4 line, 50/60Hz
